Description

The MSI GeForce RTX 5070 12G SHADOW 3X OC is powered by NVIDIA’s Blackwell architecture. It features 6,144 CUDA cores and supports real-time ray tracing with DLSS 4. The GPU has a factory overclocked boost of 2,542 MHz and 12 GB GDDR7 memory on a 192-bit bus, delivering up to 672 GB/s bandwidth for smooth visuals.

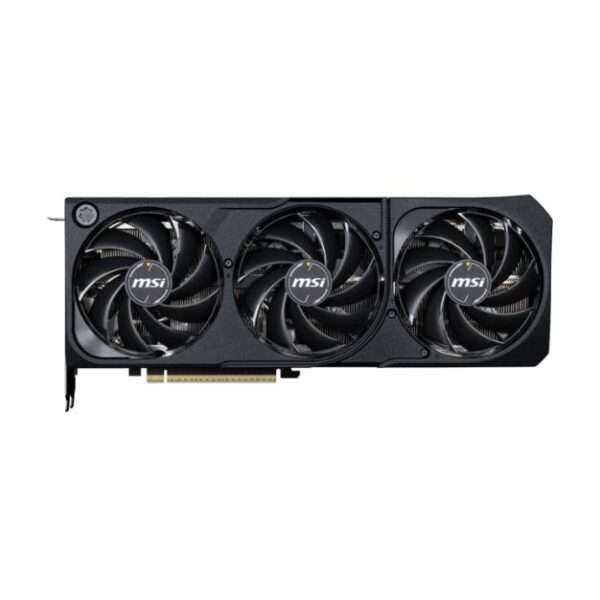

Built for performance and silence, the TORX Fan 5.0 triple-fan system optimizes airflow while keeping noise minimal. The card draws up to 250 W via a single PCIe 16-pin power connector (ATX 3.1 recommended). It includes 3× DisplayPort 2.1b and 1× HDMI 2.1b outputs, supporting up to 8K @ 120 Hz or 4K @ 480 Hz with VRR and DSC.

Performance benchmarks show ~31 TFLOPS of FP32 power and excellent 3DMark scores across raster and ray tracing tests. Additionally, MSI Center and Afterburner allow easy tweaking of performance, fan curves, and power settings.

Key Features:

• GPU & Cores: NVIDIA Blackwell, 6,144 CUDA cores, 48 RT & 192 Tensor cores

• Clock Speeds: Boost clock up to 2,542 MHz (OC)

• Memory: 12 GB GDDR7, 28 Gbps effective, 192-bit (672 GB/s)

• Bus Interface: PCIe 5.0 x16

• Power: 250 W TDP; single 16-pin (ATX 3.1 PSU recommended 650 W+)

• Cooling: TORX Fan 5.0 triple axial-fan with nickel-plated copper base

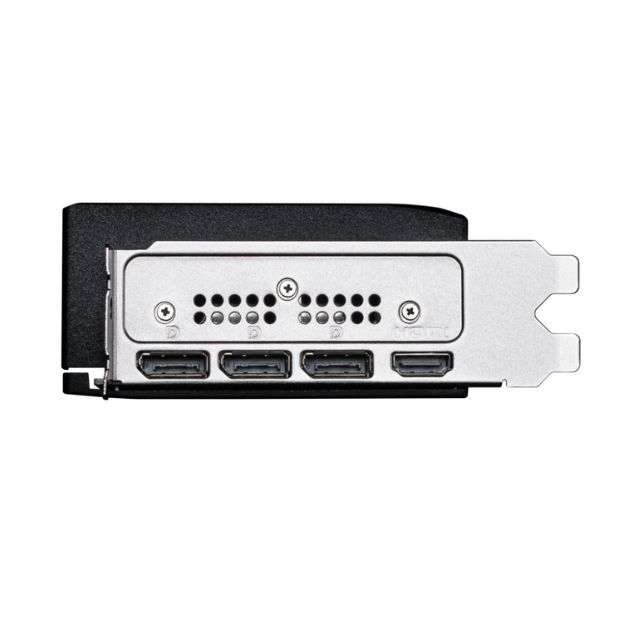

• Display Outputs: 3× DP 2.1b, 1× HDMI 2.1b (up to 8K/120 Hz)

• Dimensions: 303 × 121 × 49 mm; dual-slot width

• APIs Supported: DirectX 12 Ultimate, OpenGL 4.6, Vulkan 1.4

• Advanced Features: DLSS 4, Frame Generation, Reflex 2, NVENC 9, Zero Frozr, G‑Sync ready
